Spectroscopy Introduction

()

Spectroscopy is the branch of Science which deals with the techniques used to observe molecules. By using the physical properties of molecules and their structures, we can obtain information that indicates the precise form of the molecule. This data can also indicate the properties the substance has, such as electrical conductivity or systems of conjugated orbitals. Please note – these pages are based on the University of Liverpool’s CHEM170Introductory Spectroscopy module. They are not intended to be a comprehensive guide to spectroscopy, but rather a useful tool to help with the understanding of the basics of spectroscopy. Also – these pages are NOT intended to be used instead of attending lectures. They are simply an extra guide for students to use in their own time when studying.

Examples of spectroscopic techniques include infrared (IR), nuclear magnetic resonance (NMR), inductively coupled plasma atomic emission spectroscopy (ICP-AES) and electron paramagnetic resonance (EPR). They are a vital component of the range of analytical techniques available to chemists for identifying and characterising compounds.

The universal aspect of all spectroscopic techniques is that they rely on the interactions between electrons and photons. The absorption of a photon’s energy by an electron, and the emission of photons by electrons as a molecule relaxes, allow us to determine important information about the electronic structure of a molecule. This is the key to calculating a wide variety of properties of the molecule.

In general, we can often look at two types of spectrum – absorption or emission. In an absorption spectrum, a molecule is bombarded with photons from a controlled source. Electrons within the molecule may be able to absorb discrete amounts of energy and make the transition from one energy level to another. If the molecule has been bombarded with photons whose range of energies is continuous, then photons, arriving at a detector, which have passed through the molecule would have all their original energies except those which had been absorbed by electrons in the molecule. The absorption spectrum would contain gaps corresponding to the energies of the absorbed photons, given by the equation E = hν – the energies required to induce electronic transitions.

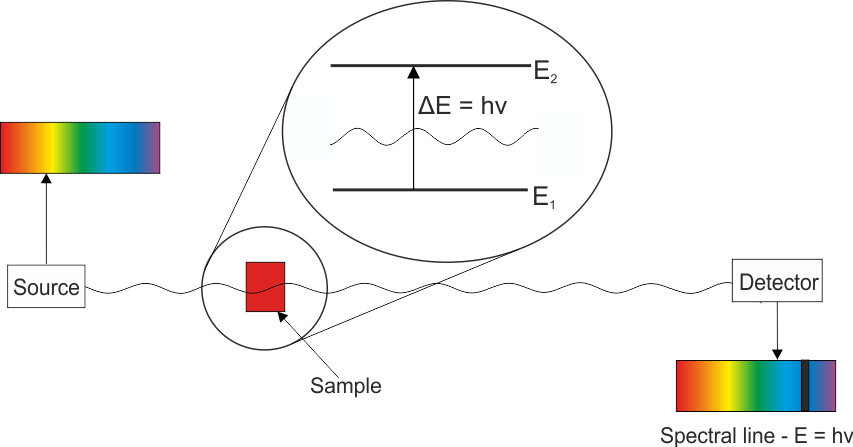

The principle of the absorption spectrum:

Energy Absorption

The counterpart to an absorption spectrum is an emission spectrum. The basic physical principle is the same – the transition of an electron from one energy level to another. However, in this case, the electron begins in the higher energy level – the “excited state”. Typically, the molecule has been excited by some non-electromagnetic process, such as heating. Following the excitation, the electrons in the excited states return to their original, most stable states – the “ground state”. This loss of energy can occur in a number of ways, but a very common way is by radiative emission of a photon. The energy of the photon, again given by the equation E = hν, is equal to the energy gap between the excited state and the ground state.

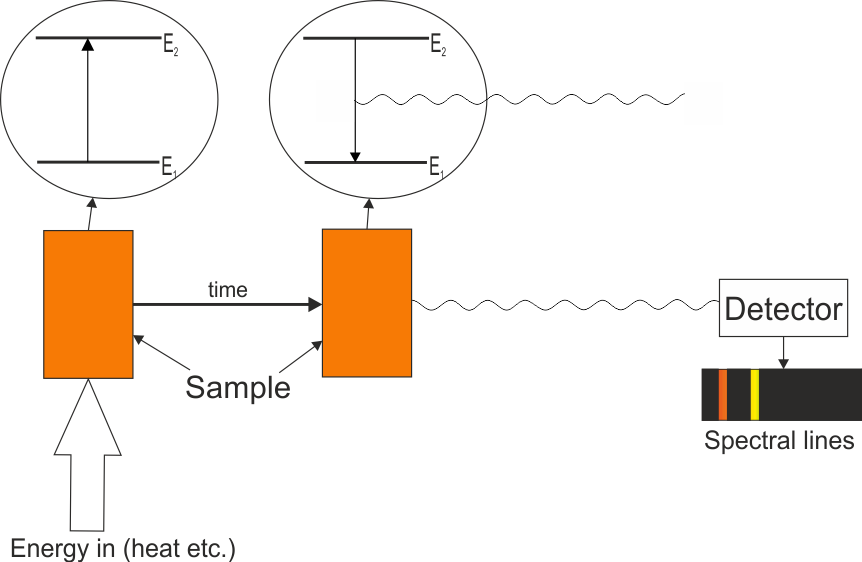

The principle of the emission spectrum:

Energy Emission

Energies of absorption or transmission are often expressed in a number of different, analogous forms. They may be expressed as energy (E, in J or eV), frequency (v, in Hz, s-1), wavelength (λ, often in nm or Å) or wavenumber (ṽ, typically in cm-1).

Handy guide to working in different units:

Unit SI equivalent Description
nm 1×10-9 m Commonly used unit for wavelength, especially when discussing UV/Vis spectroscopy.
Å (angstrom) 1×10-10 m Archaic unit often used when discussing something on the atomic scale. For example, the H-Cl bond is ≈ 1.27Å (1.274×10-10 m, 127.4 pm).
eV (electron volt) 1.602×10-19 J Defined as the energy required to move a single electron across a potential of 1 volt. Alternatively, the charge on an electron multiplied by 1 volt.
ṽ (nu bar) The Greek lower-case letter nu, with a bar (-) or tilde (~) on top. Symbol for wavenumber. Essentially, the reciprocal of wavelength, where wavelength has been converted into centimeters. To convert to energy: E = hcṽ where c is the speed of light in a vacuum, in centimeters per second (≈2.998×1010 cm s-1)

A more extensive list of commonly used units in physical chemistry is available.
