TiO2 – Rutile: Interactive 3D Structure

– Ti 6 (octahedra) : O 3 (trigonal planar)

Distorted O with Ti in half of Oh holes

Polyhedra – Layers of edge-sharing and edge-sharing
, vertex-sharing between layers

rutile structure

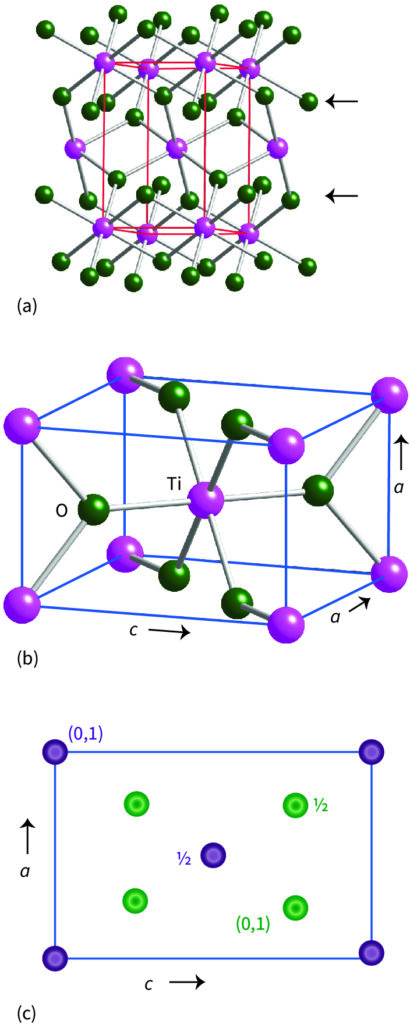

The rutile structure adopted by one polymorph of TiO2: (a) the buckled close-packed layers of oxide ions, arrowed, with titanium cations in half the octahedral holes (the unit cell is outlined); (b) the unit cell, showing the titanium coordination to oxide ions; and (c) its projection representation.
Related Structure: Anatase (TiO2)
