Bonding orbitals in Acetylene (Ethyne) sp

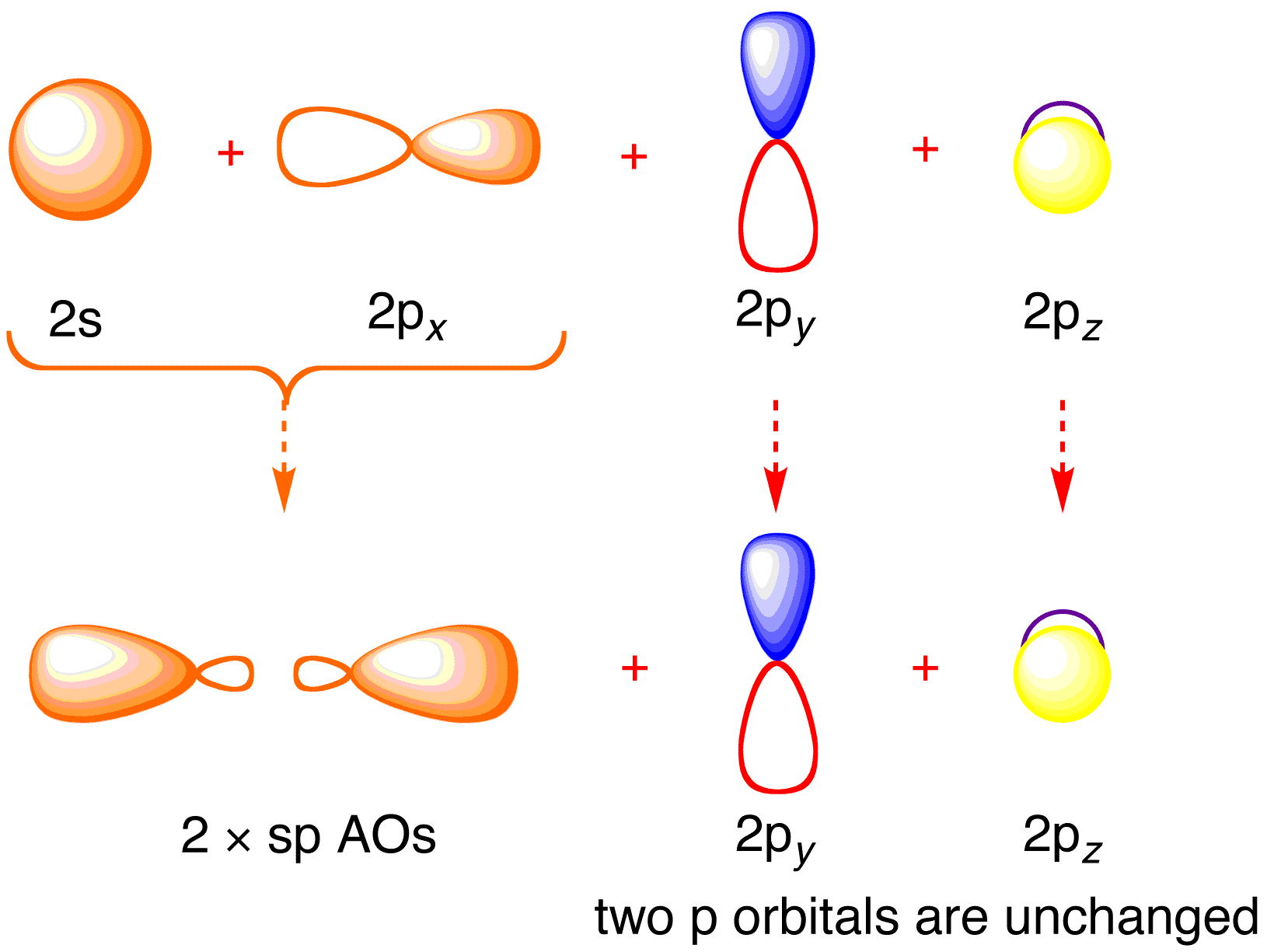

sp hybrids<
acetylene orbitals

Use the buttons to display the Hydrogen 1s and Carbon sp orbitals that make up the sigma framework and the remaining p orbitals which form the two pi-bonds.

Observe that the two pi orbitals are perpendicular.
