Diels-Alder: E,E (trans, trans) diene – Stereochemistry of a phenyl diene

Sn2

Click the structures and reaction arrows in sequence to view the 3D models and animations respectively

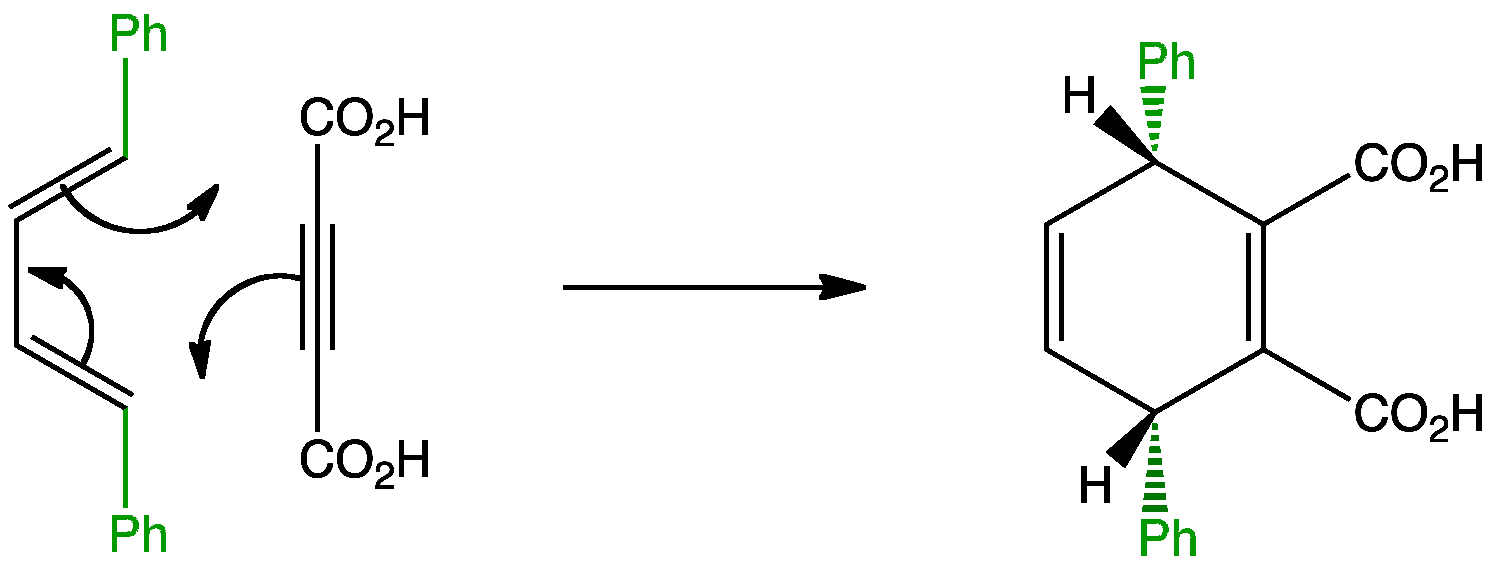

The stereochemistry of the diene must be taken into account to predict the stereochemistry of the product. An alkyne dicarboxylate was chosen as the dienophile, as there is no stereochemistry in a triple bond (ester groups have been replaced with carboxylic acids for simplicity). For this trans,trans-diene, the phenyl groups end up beneath the face of the six-membered ring. In other words, this trans,trans-diene will give a product with two phenyl groups cis to one another.

Examples of sterochemistry in cis,cis (Z,Z) and cis,trans (E,Z) dienes.

J. Sauer, Angew. Chemie Int. Ed. English, 1967, 6, 16–33.

()
