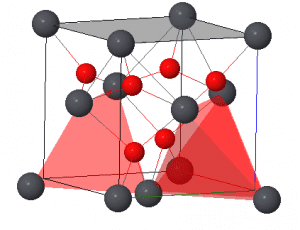

Schottky defects occur when a pair of oppositley charged ions leave the lattice structure. In the case of lead(IV) oxide, lead has a chage of +4 and the oxide ions have a charge of 2-, this means to balance charge for every 1 lead ion that leaves 2 oxide ions must also leave. This results in the overall density of the lattice being reduced. Due to the now missing counter ion, the surrounding ions move away from each other resulting in an increase in volume.
The leaving ions leave vacant sites behind (represented by the grey and red areas on the 2D diagram) and as the lower button labelled ‘Show Conduction‘ demonstrates this can lead to ions being able to move through the structure. This is especially important in the development of solid electrolytes such as LISICON and NAISCON.
Schottky defects can also occur in rock salt type structures and this again results in ionic conductivity. The rutile structure of lead(IV) oxide, used in lead acid batteries, aslo exhibits vacancy defects.
To return to the ionic conductivity home page click here.
A. R. West, Solid State Chemistry, John Wiley & Sons LTD, 2014.
