Protein Structure Representations


Please note, due to the complexity of the structure this page may take longer to load

Click Image to Display Alternate Structure

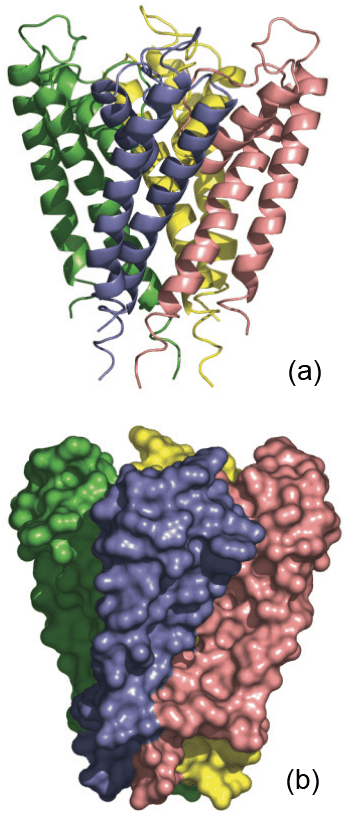

Illustrations of how protein structures are represented to reveal either (a) secondary structure or (b) the filling of space by nonhydrogen atoms. The example shows the four subunits of the K+ channel, which is found mainly embedded in the cell membrane.
